Bitbucket AST Orchestrator

The Conviso Platform Bitbucket AST Orchestrator runs Conviso AST from one Bitbucket repository (the orchestrator). Application repositories do not need a Conviso Pipelines file.

When an eligible pull request is merged, Conviso triggers a custom pipeline (run-ast-scan) on the orchestrator and passes the target repository and branch. The job obtains a short-lived clone credential from the Platform (using your API key), clones the target repository, runs conviso-ast, and sends findings to the mapped asset.

You do not store a Bitbucket App password or OAuth token for clone — only CONVISO_API_KEY.

How it works

What Conviso checks before dispatching:

1. The event is a pull request that was merged.
2. AST scans on merge is enabled on the Bitbucket integration.
3. The repository is an imported asset that is enabled.
4. The PR destination branch matches the configured merge target (see Merge target branch below).

The pipeline always appears on the orchestrator repository (not on the application repository).

note

Execution costs: Pipelines run in your Bitbucket Pipelines environment and consume your Bitbucket build minutes.

Before you begin

Work in this order: Bitbucket setup first, then Conviso Platform.

You need:

• Bitbucket ALM integration connected (OAuth), with repositories imported as assets.
• At least one application repository imported as an asset and enabled.
• A dedicated orchestrator repository (or an empty repo you will use only for this). Example / template: convisoappsec/pipeline-orchestrator.
• Permission to enable Pipelines and set Repository variables on the orchestrator.
• A Conviso API key for the same environment you will scan against (production or staging).

Term	Exact meaning
Orchestrator repository	Bitbucket repo that contains bitbucket-pipelines.yml. Conviso triggers this repo only.
Target repository	Application repo imported as an asset. It must not rely on a local Conviso Pipelines file for this flow.
Ref	Branch or tag of the orchestrator where Bitbucket loads bitbucket-pipelines.yml when Conviso starts the custom pipeline.
Merge target branch	The PR destination branch on the target repo that is allowed to trigger a scan (for example main). See below.
Custom pipeline	Entry under pipelines.custom that Conviso triggers by name (run-ast-scan).
Asset	Imported repository in Conviso (workspace/repo) where findings are stored.

Merge target branch

Conviso compares the merged PR’s destination branch to:

1. The asset’s configured AST / branch mapping, if set; otherwise
2. The integration Ref (orchestrator_ref).

Configuration	What triggers a scan
Asset branch = master, Ref = main	Only merges into master on that asset
Asset branch empty, Ref = main	Only merges into main on that asset
Asset branch empty and Ref empty	No branch filter (any destination branch can trigger). Prefer setting Ref explicitly.

Ref is still the orchestrator branch that holds bitbucket-pipelines.yml. It is reused as the default merge-target filter when the asset has no branch of its own. Those are two roles of the same field — do not confuse “where the Pipelines file lives” with “any branch on the target”.

---

Part 1 – Bitbucket setup

Step 1 – Create the orchestrator repository

1. Create a Bitbucket repository (recommended name: conviso-ast-orchestrator), or copy from convisoappsec/pipeline-orchestrator and keep only bitbucket-pipelines.yml.
2. Enable Pipelines for that repository (Repository settings → Pipelines → Settings).
3. Choose the branch that will contain the Pipelines file (almost always main). That value is what you will set as Ref in Conviso.

Step 2 – Create the CONVISO_API_KEY variable

In the orchestrator repository (not the target):

1. Open Repository settings → Repository variables.
2. Create:

Name	Secured?	Required
CONVISO_API_KEY	Yes (secured)	Yes

Use the API key for the same Conviso environment as the Platform you configured (production vs staging).

Optional variable

You may add CONVISO_COMPANY_ID. The pipeline uses it only when the company_id input is empty (typical for a manual Run pipeline). When Conviso dispatches after a merge, it sends company_id in the variables, so this fallback is not required for Platform-triggered runs.

Do not create a Bitbucket App password or OAuth token for clone. The job calls conviso-ast-repository-token --provider bitbucket, and the Platform returns the Bitbucket integration’s OAuth credential for that run.

Step 3 – Add bitbucket-pipelines.yml

Example repository

Public template: convisoappsec/pipeline-orchestrator

Pipelines file: bitbucket-pipelines.yml

On the orchestrator branch you will set as Ref (usually main):

1. Create bitbucket-pipelines.yml at the repository root.
2. Paste the YAML below (or copy it from the example repo).

image: convisoappsec/convisoast_v2:latest

pipelines:
  custom:
    run-ast-scan:
      - variables:
          - name: repo_full_name
          - name: branch
          - name: commit_sha
            default: ""
          - name: pr_id
            default: ""
          - name: api_url
            default: https://api.convisoappsec.com
          - name: company_id
            default: ""
          - name: asset_id
            default: ""
          - name: scan_run_id
            default: ""
      - step:
          name: Run Conviso AST
          clone:
            enabled: false
          script:
            - export CONVISO_APIKEY="$CONVISO_API_KEY"
            - |
              export CONVISO_BASE_URL="${api_url:-https://api.convisoappsec.com}"
              CONVISO_BASE_URL="${CONVISO_BASE_URL%/}"
              case "$CONVISO_BASE_URL" in
                https://app.convisoappsec.com)
                  export CONVISO_BASE_URL="https://api.convisoappsec.com"
                  ;;
                https://staging.convisoappsec.com)
                  export CONVISO_BASE_URL="https://api.staging.convisoappsec.com"
                  ;;
              esac
            - export CONVISO_REPO_FULL_NAME="$repo_full_name"
            - |
              case "${asset_id:-}" in
                ""|none|0) unset CONVISO_ASSET_ID || true ;;
                *) export CONVISO_ASSET_ID="$asset_id" ;;
              esac
              case "${scan_run_id:-}" in
                ""|none|0) unset CONVISO_SCAN_RUN_ID || true ;;
                *) export CONVISO_SCAN_RUN_ID="$scan_run_id" ;;
              esac
            - umask 077 && conviso-ast-repository-token --provider bitbucket > repo_token
            - |
              git clone --branch "$branch" \
                "https://x-token-auth:$(cat repo_token)@bitbucket.org/${repo_full_name}.git" target
            - rm -f repo_token
            - cd target
            - export GIT_CONFIG_COUNT=1 GIT_CONFIG_KEY_0=safe.directory GIT_CONFIG_VALUE_0='*'
            - export CONVISO_COMPANY_ID="${company_id:-$CONVISO_COMPANY_ID}"
            - export CONVISO_BRANCH="$branch"
            - conviso-ast -p . -o "$BITBUCKET_CLONE_DIR/conviso-ast-session.zip"
          artifacts:
            - conviso-ast-session.zip

3. Commit and push to that Ref branch.

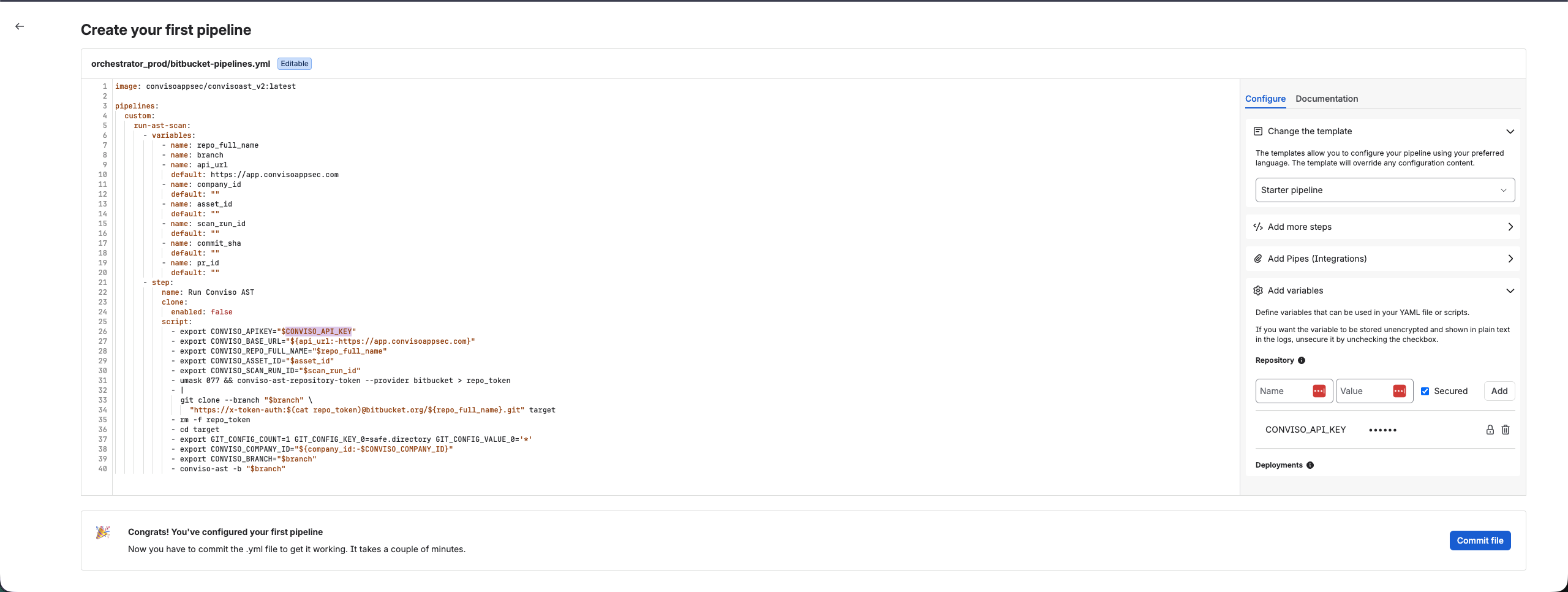

Step 3: bitbucket-pipelines.yml with run-ast-scan, and secured CONVISO_API_KEY in repository variables.

important

• The custom pipeline name must be exactly run-ast-scan — that is the selector Conviso triggers.
• This template clones branch (the PR destination branch after merge). Conviso also sends commit_sha and pr_id for correlation.

---

Part 2 – Conviso Platform setup

Step 4 – Configure the orchestrator

1. Open Integrations → Bitbucket → Configuration.
2. Turn AST scans on merge on.
3. Under Orchestrator pipeline, fill:
   • Workspace — Bitbucket workspace slug of the orchestrator repository.
   • Repository — repository slug (not the full URL).
   • Ref — orchestrator branch/tag that contains bitbucket-pipelines.yml (e.g. main).
4. Save.

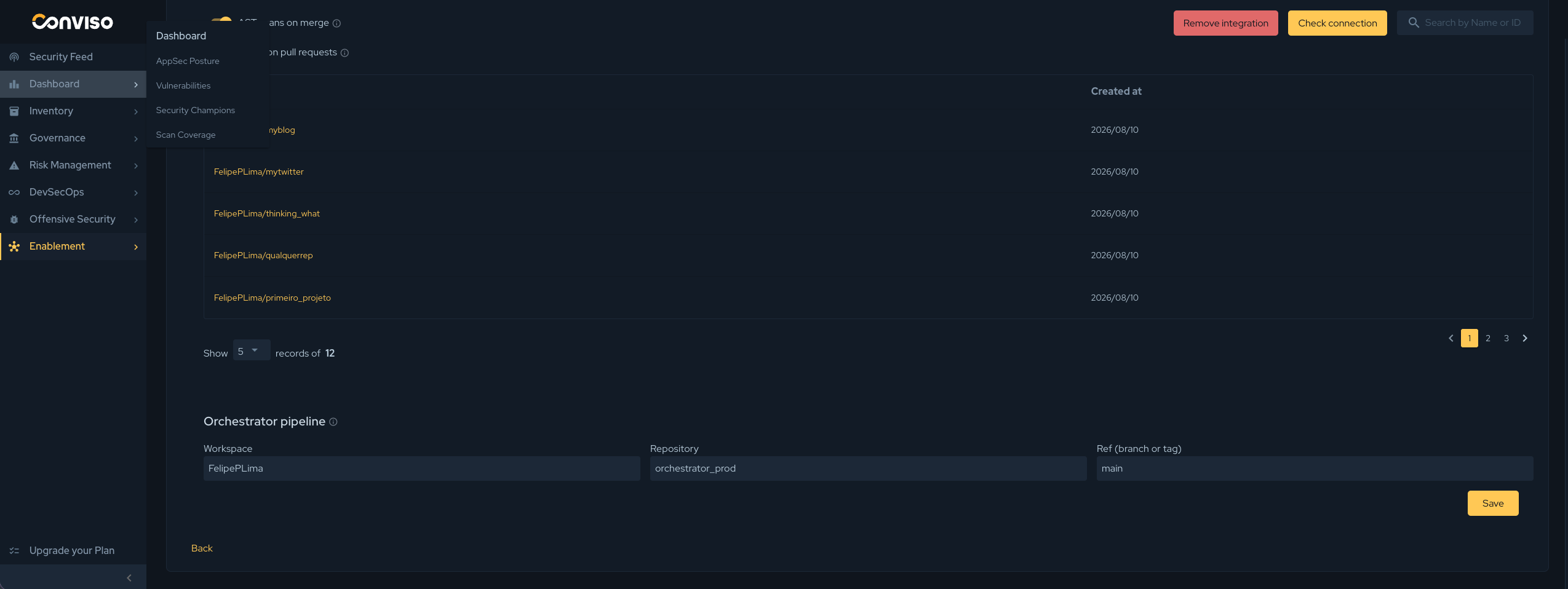

Step 4: Orchestrator workspace, repository, ref, and AST scans toggle.

Step 5 – Assets and merge target

1. Confirm each application repository is imported and enabled.
2. Set the asset branch mapping when the merge target is not the same as Ref (example: Ref main on the orchestrator, merges into master on the asset → map the asset to master).
3. If the asset has no branch mapping, merges must go into the branch named by Ref (or any branch only if Ref is also empty — avoid that setup).

---

End-to-end flow (after setup)

1. Developer merges a PR into the configured merge target on an imported, enabled asset.
2. Conviso validates the event and configuration, then starts custom pipeline run-ast-scan on the orchestrator / Ref.
3. Variables include at least: repo_full_name, branch (PR destination), commit_sha, pr_id, api_url, company_id, asset_id (blank values may be omitted).
4. Job steps: issue repository token → clone target at branch → run conviso-ast → upload session artifact.
5. Findings appear on the asset in Conviso Platform.
6. In Bitbucket, open the orchestrator → Pipelines → run run-ast-scan to inspect the job.

Validation checklist

Check	Expected
Variable	CONVISO_API_KEY exists on the orchestrator (secured)
Path	bitbucket-pipelines.yml with pipelines.custom.run-ast-scan is on the Ref branch
Conviso	Workspace + repository + Ref saved; AST scans on merge on
Asset	Target repo imported, enabled; merge target branch matches mapping or Ref
After merge	New Pipelines run on the orchestrator for run-ast-scan; findings (or a clean result) on the asset

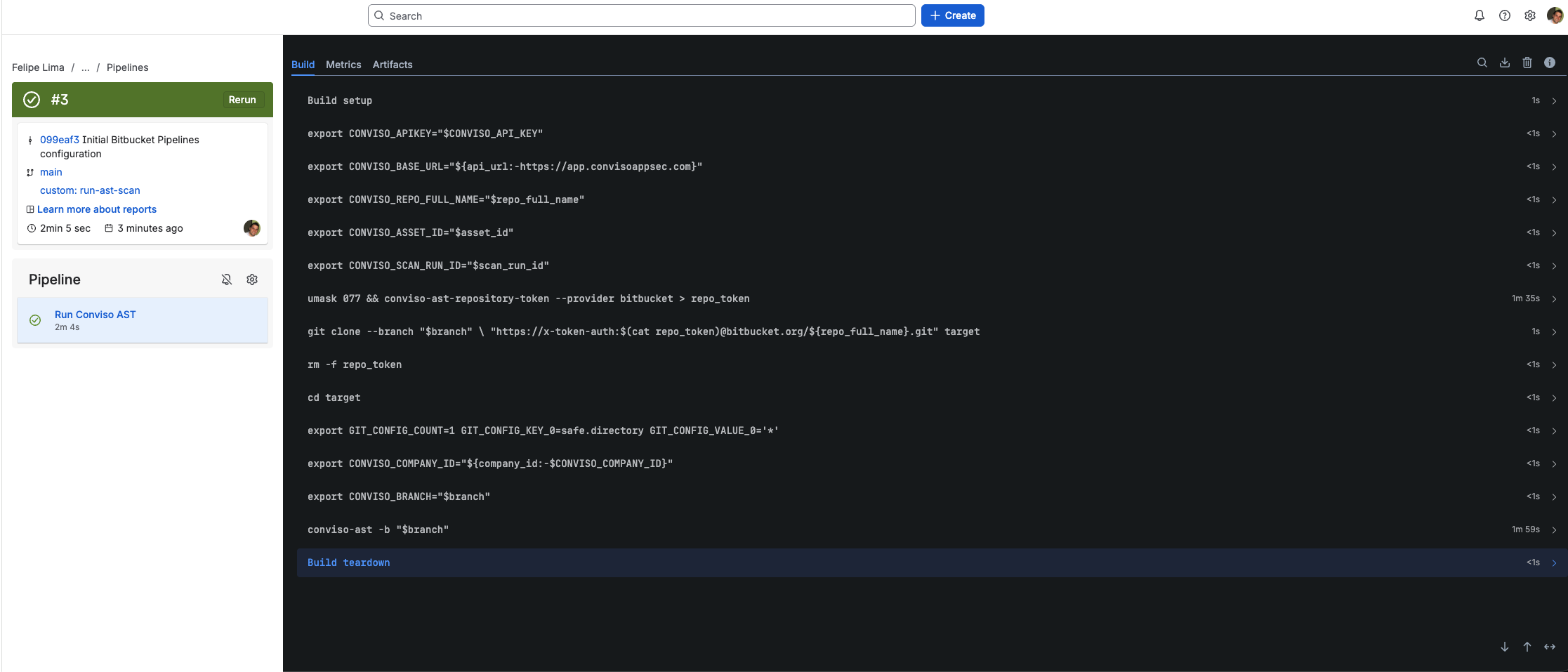

Validation: successful orchestrator pipeline run.

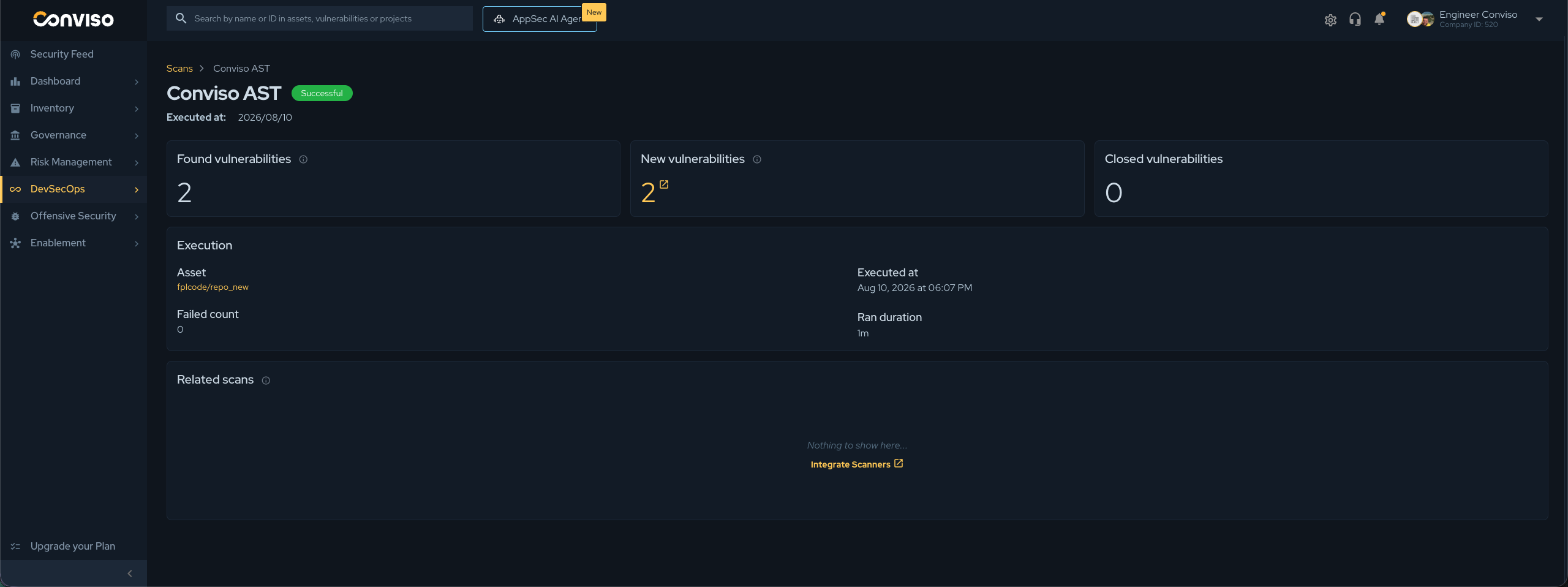

Validation: findings visible on the asset in Conviso Platform (Conviso AST).

Manual test (optional): on the orchestrator, Run pipeline → custom pipeline run-ast-scan. Set repo_full_name and branch to an imported asset. Leave api_url empty for production (https://api.convisoappsec.com). Set company_id or define CONVISO_COMPANY_ID.

Troubleshooting

Symptom	Cause / fix
Merge done, no pipeline	AST scans on merge off; workspace/repository/Ref incomplete; asset disabled or not imported; PR destination ≠ asset branch / Ref; webhooks unhealthy
Requested selector is not found	pipelines.custom.run-ast-scan missing on the exact Ref configured in Conviso
Token / clone fails (HTTP 4xx)	repo_full_name not an imported asset for that API key/company; wrong environment (CONVISO_API_KEY vs api_url); Bitbucket integration not authorized / OAuth user lacks access
Unreadable / HTML response from Platform	Use the API host (api.*), not app.* / staging.*. The template normalizes those hosts automatically
Scanner missing CONVISO_COMPANY_ID	Manual run without company_id and without variable CONVISO_COMPANY_ID
Wrong code scanned	Merge target / branch mismatch; confirm you merged into the configured destination branch
